The self-righting mechanism (more commonly referred to as srimech, derived from the words self-righting mechanism) is a device used by robots to flip itself back onto its wheels if it gets flipped over or stuck. Srimech's are one of two main methods of neutralising the effect of flippers, the other being invertible designs.

The first attempt to self-right in the UK Series was by Chaos, after being flipped over by Matilda in Series 2, but the first successful srimech in the UK Series was used by Cassius also in Series 2, where it used its flipping arm to right itself after being overturned by Sir Killalot.

PoweringEdit

Usually, self-righting mechanisms are powered by either pneumatics (usually as part of a flipping weapon, Chaos 2 and Cassius were some of the first robots to have utilised these systems) or by an electric motor powered by the battery, Hypno-Disc and Panic Attack used these rather rare systems to great effect. However, there are also occasionally self-righting mechanisms powered by other means. Razer's self-righting wings are a good example-they were moved up and down by a steel cable attached to the weapon, allowing it to self-right, as well as give its infamous "salute".

Origins of the SrimechEdit

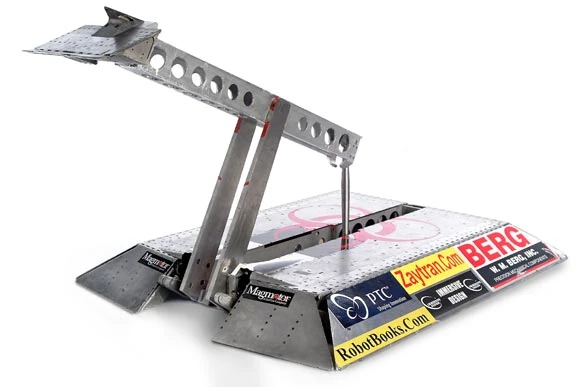

Biohazard

Biohazard, the first machine ever to self-right

The origins of the self-righting mechanism lie not only in UK Robot Wars, but in the original US competition, and famous robots Biohazard and Vlad the Impaler.

  • In 1996, Biohazard defeated rival machine Vlad the Impaler by pinning it against the wall for 30 seconds. The match ended and Biohazard released its foe, but Vlad, apparently disappointed at the loss, turned and used its pneumatic lifter on Biohazard to flip and immobilise it. Biohazard was able to self-right by use of its electric lifting arm. This is generally believed to be the first display of self-righting at a tournament, but it took place after the conclusion of a match and had no bearing on the outcome.
Vlad-BBS3

Vlad the Impaler, the first robot to self-right during a battle

  • In 1997, in another match between Biohazard and Vlad the Impaler, Vlad demonstrated its special pneumatic device that could quickly and repeatedly pop Vlad back upright from an inverted orientation. The device was successfully used to self-right from an immobilised position several times, but Vlad lost the match in a judge's decision.

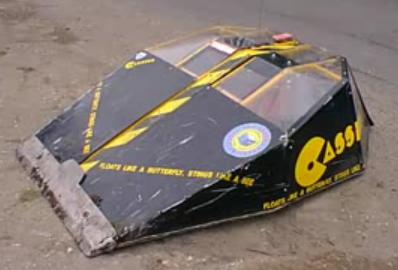

Cassius

Cassius, father of the srimech, the first robot to self-right and manage to continue in the tournament

  • In Robot Wars: The Second Wars, Cassius was flipped onto its back by Sir Killalot during the Pinball trial[1]. Despite this, Cassius used its flipping arm to self-right, landing on its wheels and managing to continue the Pinball trial. This was the first recorded time that a srimech had allowed a robot to continue in a tournament.
  • Later in that series, Cassius was fighting reigning UK Champion Roadblock. Cassius was once again flipped over, but used its righting arm to land back on its wheels and go on to defeat Roadblock in battle. This was the first ever recorded instance of a robot going on to win a battle after being flipped.

The term was coined by Rex Garrod after Cassius self-righted for the first time. All three robots are credited with the evolution of the self-righting mechanism, and are all members of The Combat Robot Hall of Fame.

TypesEdit

During the show's history, there were multiple different ways in which a robot could self-right:

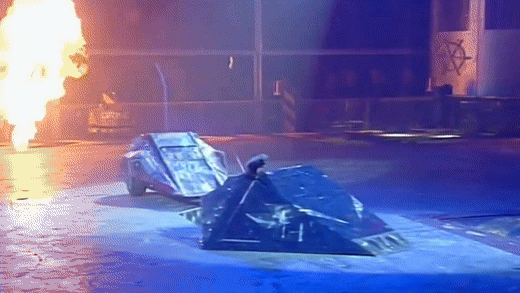

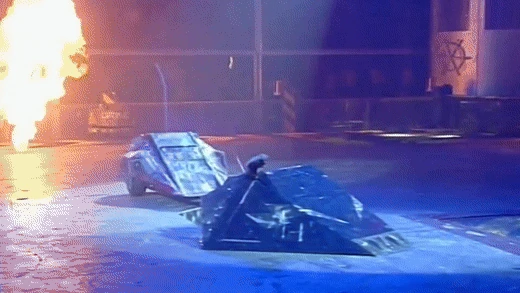

WeaponsEdit

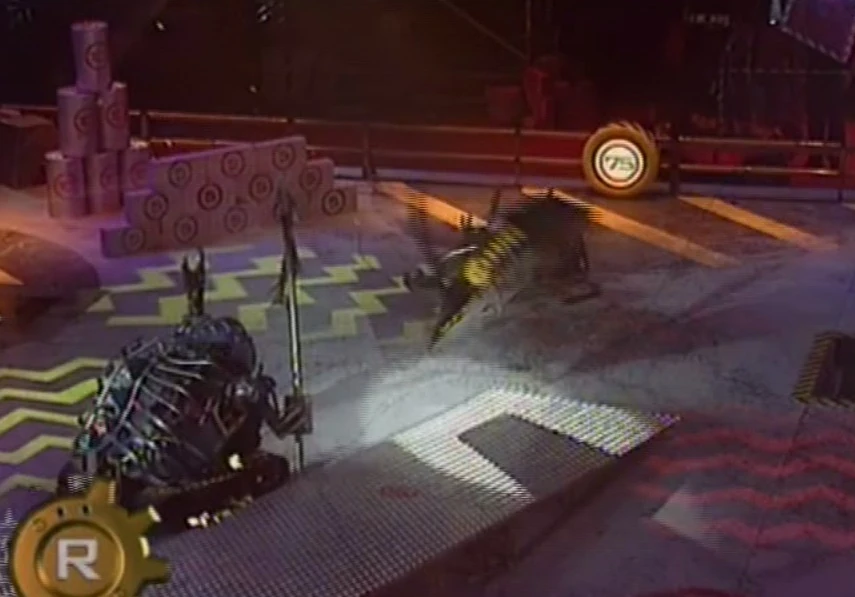

CassiusS2Pinball

Cassius self-rights for the first time

MortisSrimechS3

Mortis demonstrates its self-righting arm

Iron-Awe self-right

Iron-Awe, the first robot to use an overhead weapon to self-right

Mute self righting Judge Shred 3

Mute struggles to self right, whilst Judge Shred 3 gets another flip in

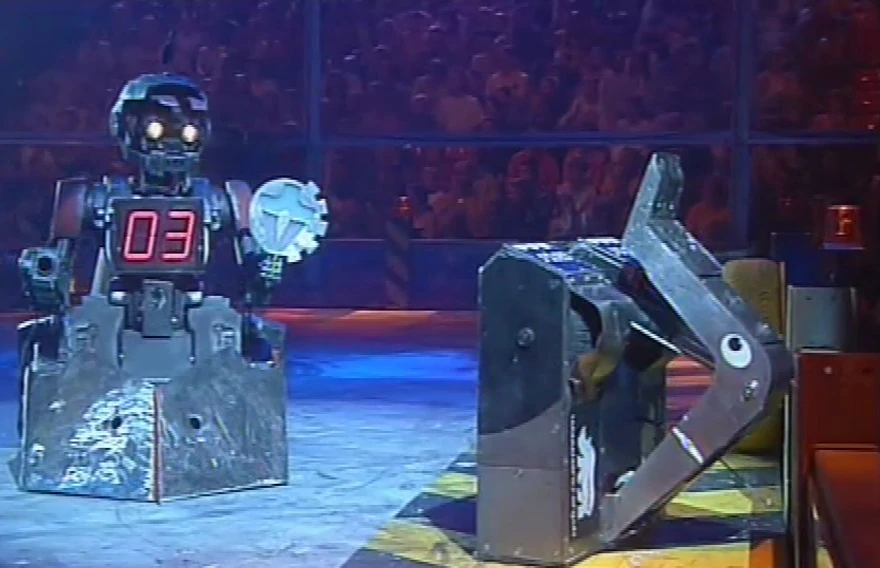

Refbot counts out ceros

Ceros is counted out after losing power to its flipper

One of these methods was through the use of a robot's own weapon. This was first seen in Series 2, where eventual runner-up Cassius used its flipping arm to right itself after being flipped over on two occasions. Earlier in Series 2, Chaos also attempted to self-right using its own flipping arm, but failed to do so. After Series 2, more robots began to be capable of righting themselves using their flippers, starting with Chaos 2 in its Series 3 Heat Final, with other flipper-wielding robots, including Firestorm, Bigger Brother, Thermidor 2 and Apollo, all proving capable of doing so in later series.

In Series 4, Iron-Awe became the first robot to self-right using an axe, and this was followed by others including Dominator 2, Terrorhurtz and Thor as the series progressed. Other forms of self-righting weapons included the lifting arms of Wild Thing and Mortis, and the lifting scoop of Behemoth, which was upgraded to do so for Series 8-9.

Series 9 Grand Finalist Aftershock became the first robot to successfully incorporate a self-righting design using a spinning weapon. This is different to various other robots which have survived a flip with a lucky bounce off the spinner, as its disc and later asymmetrical bar spinner proved themselves reliable at self-righting.

The main advantage of self-righting through the use of a weapon is that all the design focus can be on exploiting the power from the weapon without having to accommodate extra self-righting mechanisms, therefore reducing the weight and power that can be put through the main weapon. The main disadvantage is that weapons are targets for opponents, and are also subject to Malfunctions, causing a loss of both attacking power and the self-righting ability. Pneumatic weapons, such as flippers and axes, are particularly susceptible to depletion as they run on limited CO2 supplies, which will start to run out, either reducing the power of the weapon or causing it to stop firing altogether. This ultimately cost robots like Chaos 2, Tsunami and TR2 throughout both runs of Robot Wars.

Srimech Type Description of srimech Notable robots
Rear-hinged flipper Robots are catapulted in an arch back onto their wheels. One of the most entertaining to watch but the one where CO2 depletion is most problematic. Chaos 2 was the first to self-right successfully using this weapon type. Chaos 2, Dantomkia, Apollo
Front-hinged flipper Flipper activates and pushes body up and backwards until gravity pulls it back onto its wheels. Does not require an "explosive" flip but fails if pinned or does not have a clear space behind it. The first type of srimech to work successfully on the show (Cassius, Series 2 Semi-Final). Firestorm, Mute, Cassius
Lifters The robot is heaved onto its wheels as the lifter opens. Lacks the powerful trajectory that rear-hinged flippers have, and is usually slower. Wild Thing (Series 4-5), Mortis
Lifting scoops Same motion as Lifters. Effectiveness depends on the weapon's design, size and power. Behemoth (Series 8-10), Shockwave
Overhead Weapons Functions essentially in the same method as front-hinged flippers. Suffer from balancing issues if the robot is too wide or heavy (as seen in Bamm Bamm's failure in Series 7), and from limited CO2 supplies if pneumatically-powered. Dominator 2, Iron-Awe (Series 4, 6-7), Terrorhurtz
Vertical crushers TX-108, which competed in an unaired battle of Robot Wars Extreme: Series 1, used a crushing arm which could push backwards as a srimech, negating the need for an additional mechanism. This allowed the robot to save weight, at the expense of slow self-righting, although TX-108 itself would not appear in televised combat. TX-108
Vertical flywheels The flywheel makes contact with the arena floor as the robot is inverted, 'kicking' it back onto its wheels. Aftershock
Bar spinners (horizontal) When inverted, large horizontal bar spinners can be spun up to full speed, and the gyroscopic imbalance causes the robot to naturally flip itself back over. Apex
Bar spinners (vertical) Functions in the same method as vertical flywheels. Aftershock
Snapping jaw A jaw designed to snap downwards, which also exerts enough force when retracting to right the user. Bucky the Robot

Separate MechanismsEdit

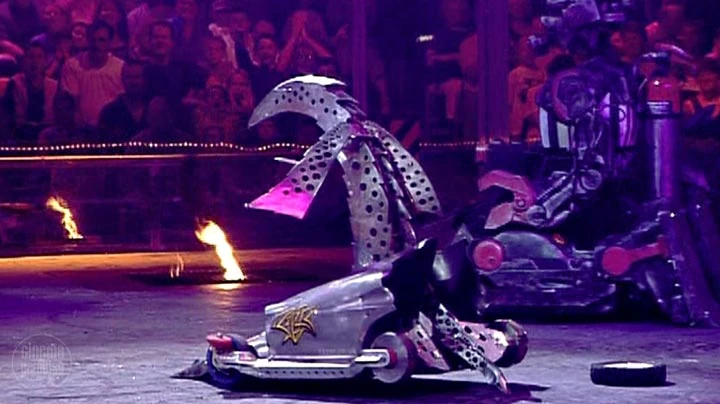

RazerPirouette

Razer raises its wings

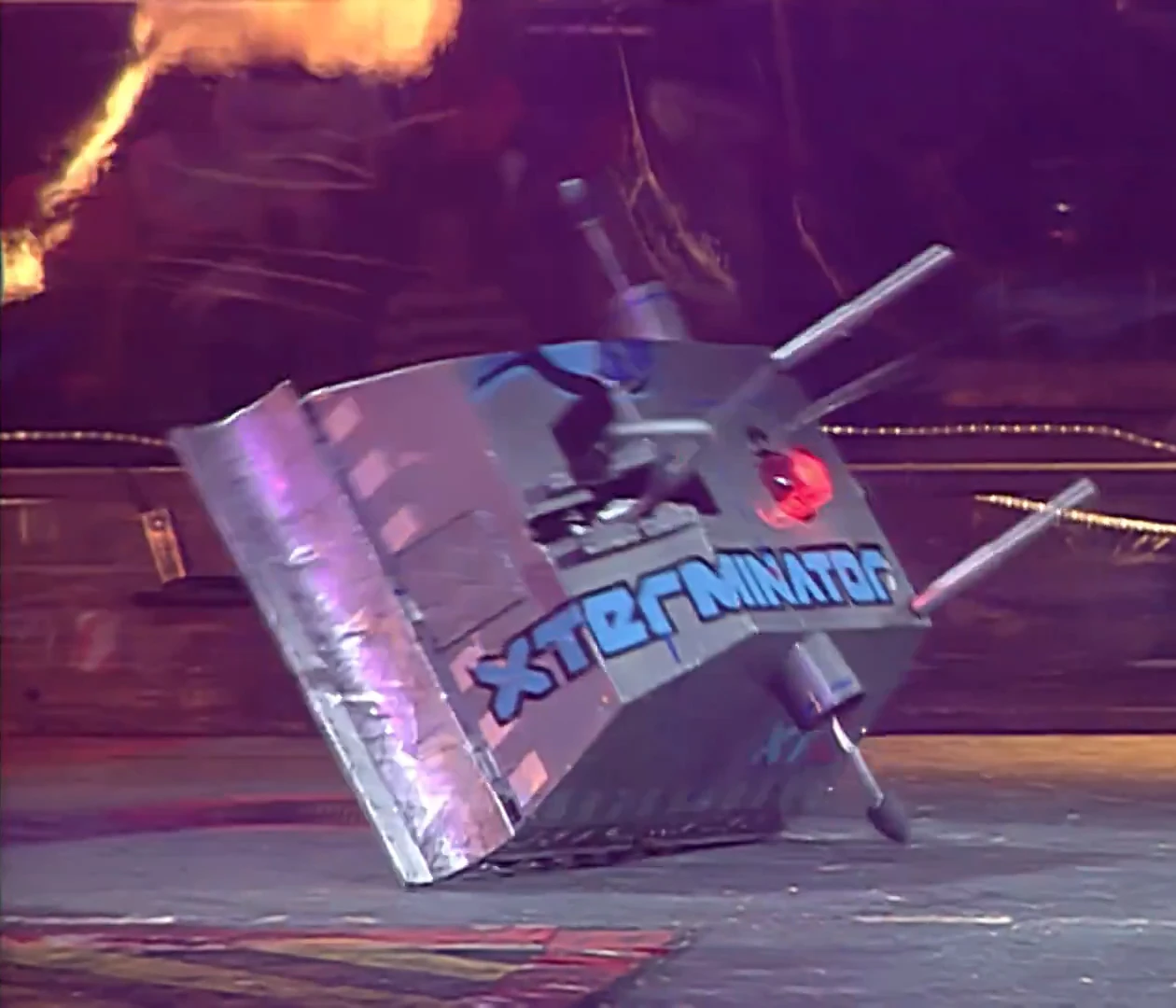

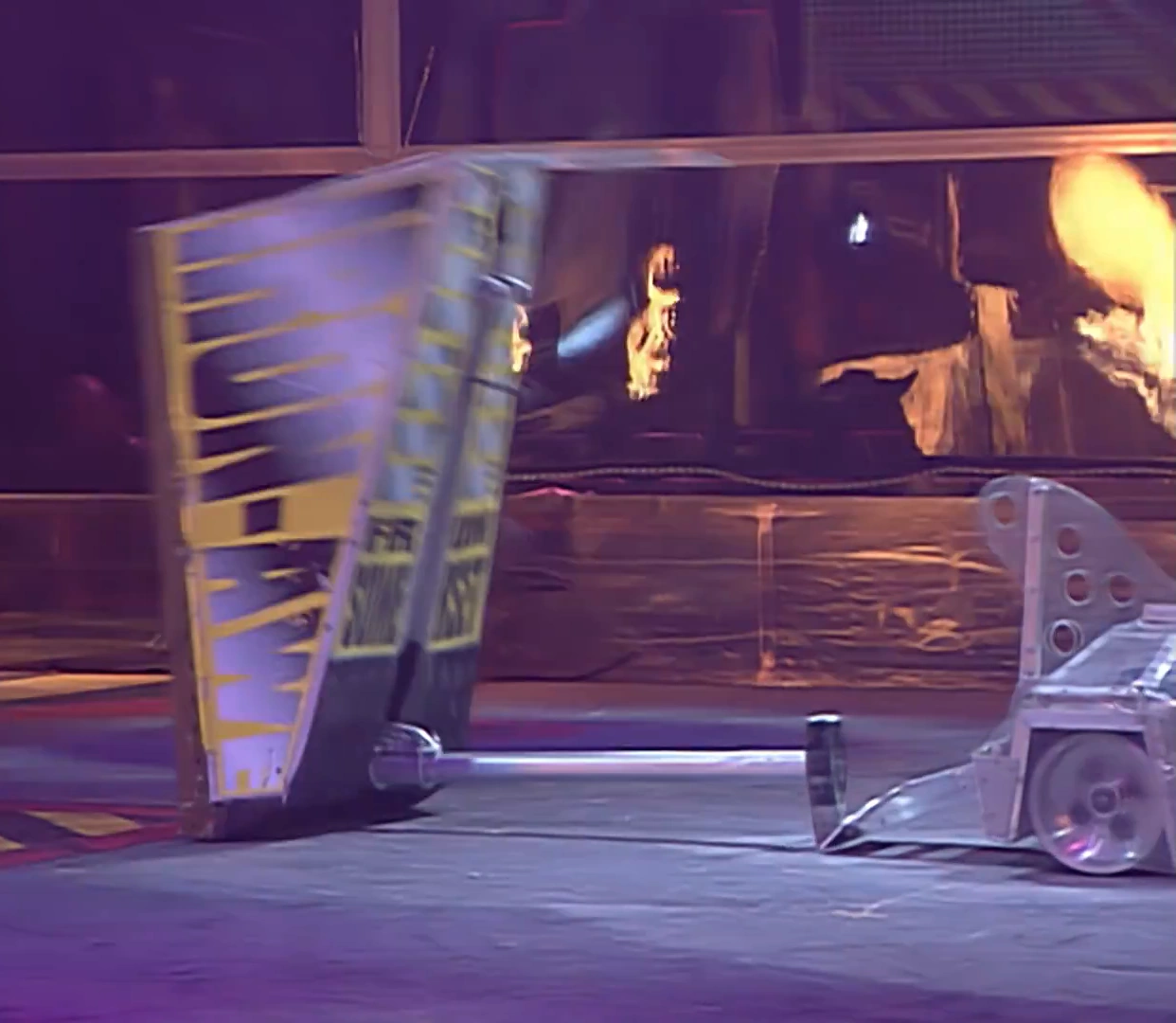

X-terminator 2 self righting

The Series 4 X-Terminator's side spikes push it back onto its wheels

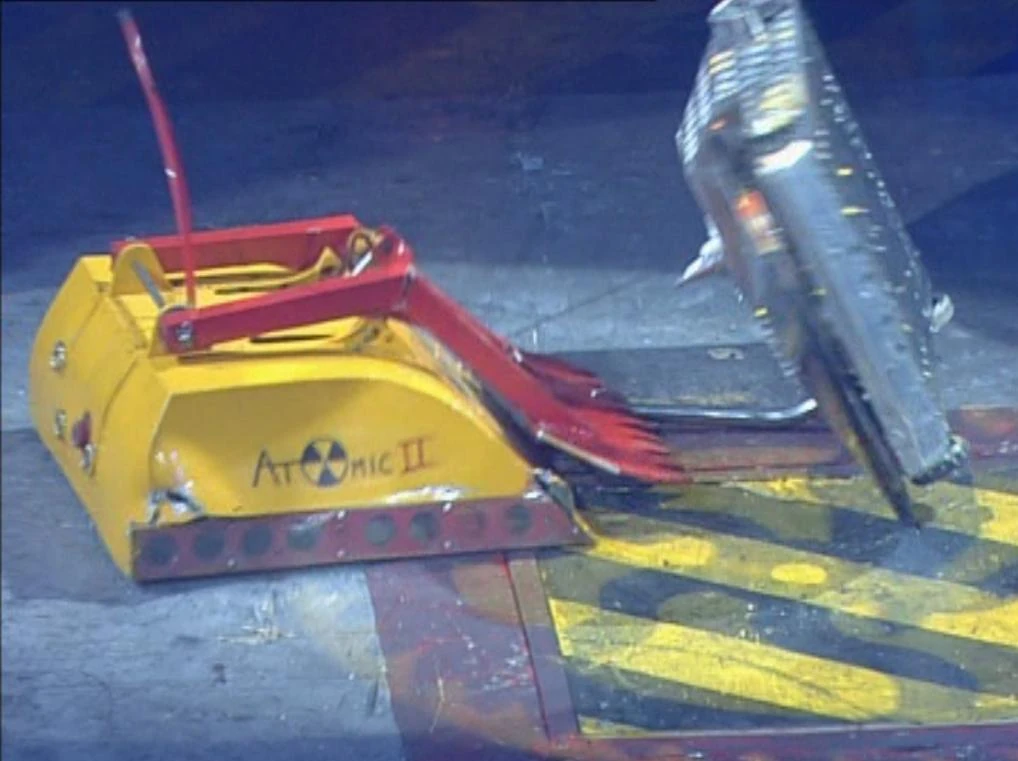

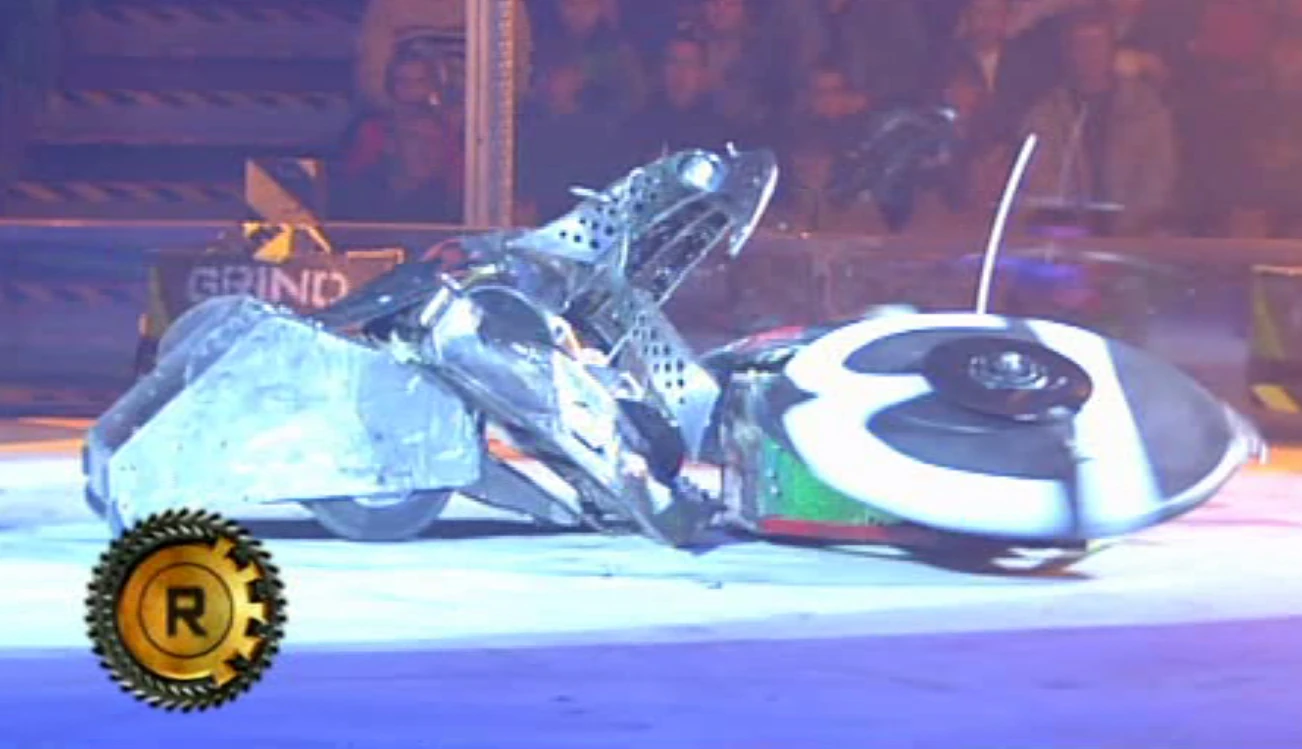

HypnoDiscselfrights

Hypno-Disc heaves itself back upright against Atomic 2

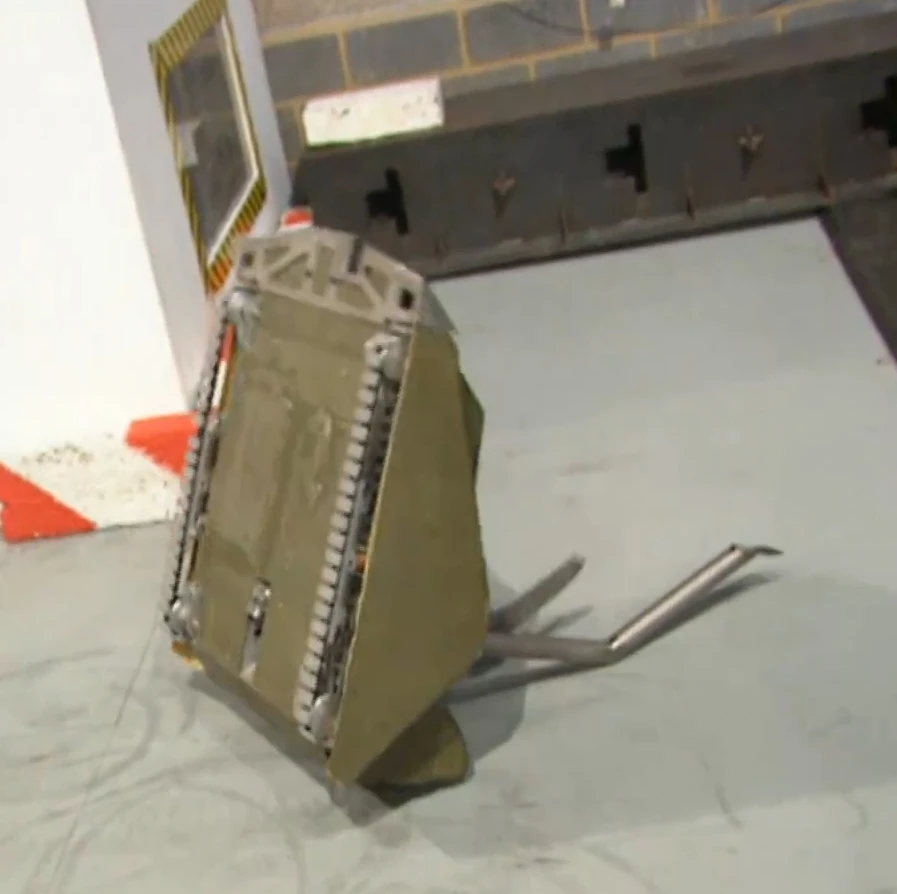

Pulsar srimech

Pulsar demonstrates its srimech arm

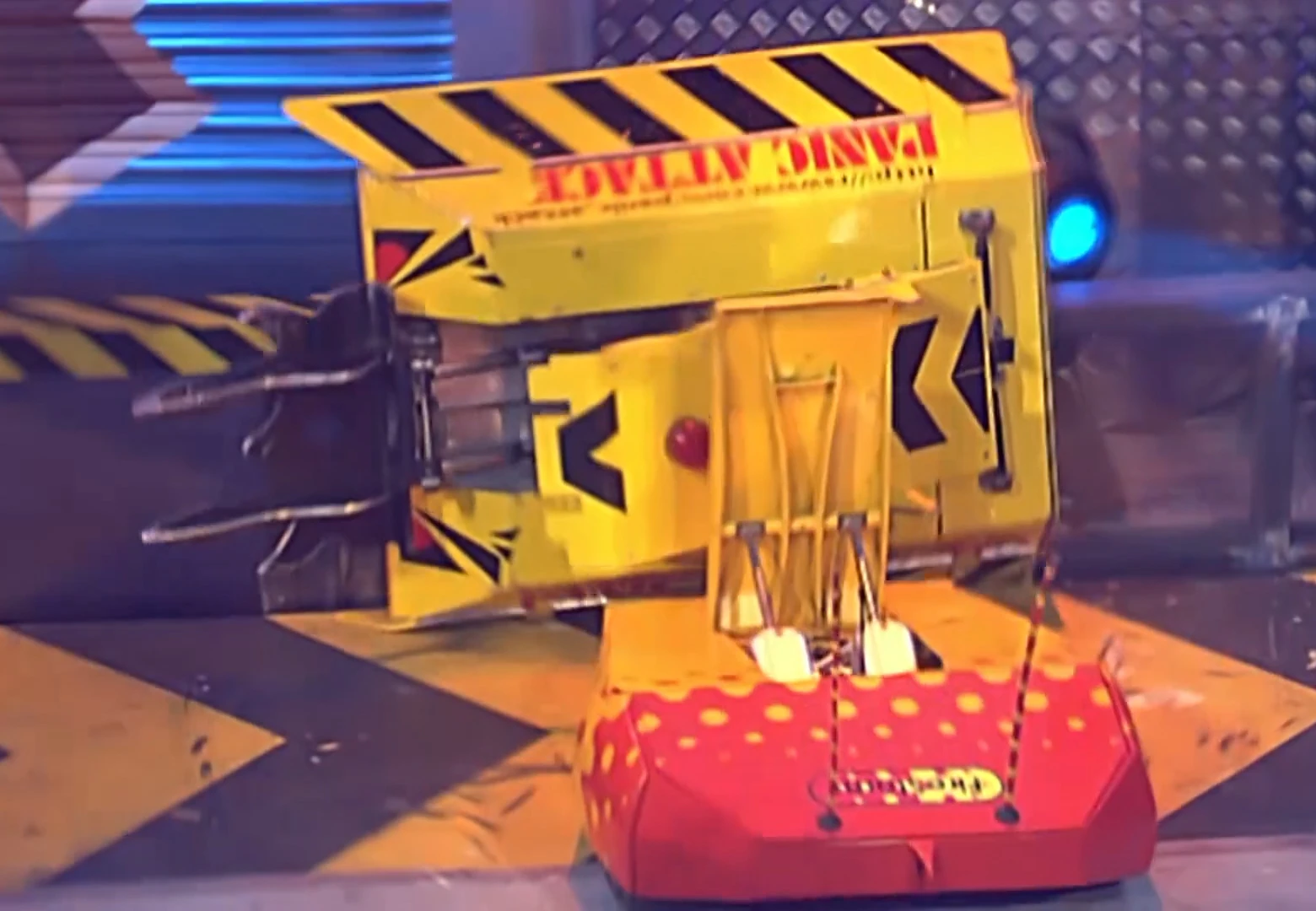

Firestorm vs panic attack

Panic Attack struggles to self-right against Firestorm 3

ChaosRazer13Black1

Razer has one of its wings ripped off by 13 Black

Not every weapon has a self-righting capability, so another form of srimech was a separate mechanism added to the robot, which existed in various forms across the show's history. These included top-mounted lids such as those found on the later incarnations of Panic Attack, to the side-mounted bars of Hypno-Disc and Ironside3, self-righting wings attached to crushers such as Razer and Ming 3 or specific side spikes such as on the various incarnations of X-Terminator. They could either function by re-righting the robot when it was on its back, or from its sides where it was most susceptible to being stranded.

These self-righting mechanisms had the advantage that they did not detract from the efficiency and longevity of a robot's weapon. At the same time, however, they could often be easily targeted by opponents, and, like weapon-based srimechs, were prone to failure if they were damaged or did not work properly. Additionally, they were generally less effective than weapon-based srimechs. This was of particular relevance to Panic Attack, whose self-righting lid rarely succeeded in fully righting the robot, and broke after Refbot tried to free it from the arena wall in the Extreme 2 Commonwealth Carnage. 13 Black's side-bar srimech was also susceptible to failing, which it did in both of its Series 7 battles, while Razer's wings were easily torn off by both Big Nipper and 13 Black during its appearances.

Srimech Type Description of srimech Notable robots
Side-Bars A small, top-mounted bar mechanism intended to push the robot sideways back onto its wheels. Hinged at one side by the edge of the robot, it was long enough to overcome any obstructions by the robot's weapons. Hypno-Disc, Kan-Opener (Series 5), 13 Black, Ironside3
Overhead Bar A bar mounted on the top of a robot designed to turn the robot back onto its wheels either forwards or backwards. Differs from side arms in that they are usually hinged at the front or the rear of the robot, pushing it back onto its wheels in a similar motion to front- or rear-hinged lifters. The Alien, Pulsar, Magnetar
Overhead Bars and Lids A srimech mounted on the top of a robot designed to turn the robot back onto its wheels either forwards or backwards. Ranging from single bars (e.g. The Alien, Pulsar), multiple bars joined together (e.g. Cedric Slammer) to full-covered "lids" (e.g. the Series 4-5 and Extreme 1-2 versions of Panic Attack). They push the robot back onto its wheels using a similar motion to rear-hinged lifters. These srimechs were sometimes ineffective and prone to failure due to the slowness of their activation, with Panic Attack famously only self-righting once in three attempts. Panic Attack, Cedric Slammer, The Alien, Pulsar
Side Spikes Pneumatic spikes situated on either side of the robot, which would push it back over if it was positioned on its side. X-Terminator (Series 3-4, Series 7)
Side Arms A mechanism very similar to the side spikes. Small arm-like mechanisms installed into the side of the robot which would push it back onto its wheels, and were attached close to the robot's base. Behemoth, ICU, X-Terminator (Series 5-6), Eric
Rotating Ring A large, rotating, metal ring around the robot that can tip it back on its wheels as well as flipping/lifting other robots. Nuts (Series 8)
Tower Mechanism The Series 4 version of Sir Chromalot featured a unique self-righting mechanism which was largely based on the side arm srimech. Supported by a large tower, a series of arms would push down on the robot, much like an umbrella, in an attempt to push it back onto its wheels. This srimech was never properly seen in action. Sir Chromalot (Series 4)
Wings First, and most notably, used by Razer, these were most commonly seen in robots armed with vertical crushers. These were usually two blade- or wing-shaped mechanisms mounted either side of the robot, which were attached to the crusher by a cable, and would open when the crusher reached a certain angle. Razer, Ming 3, Chompalot

Passive DesignsEdit

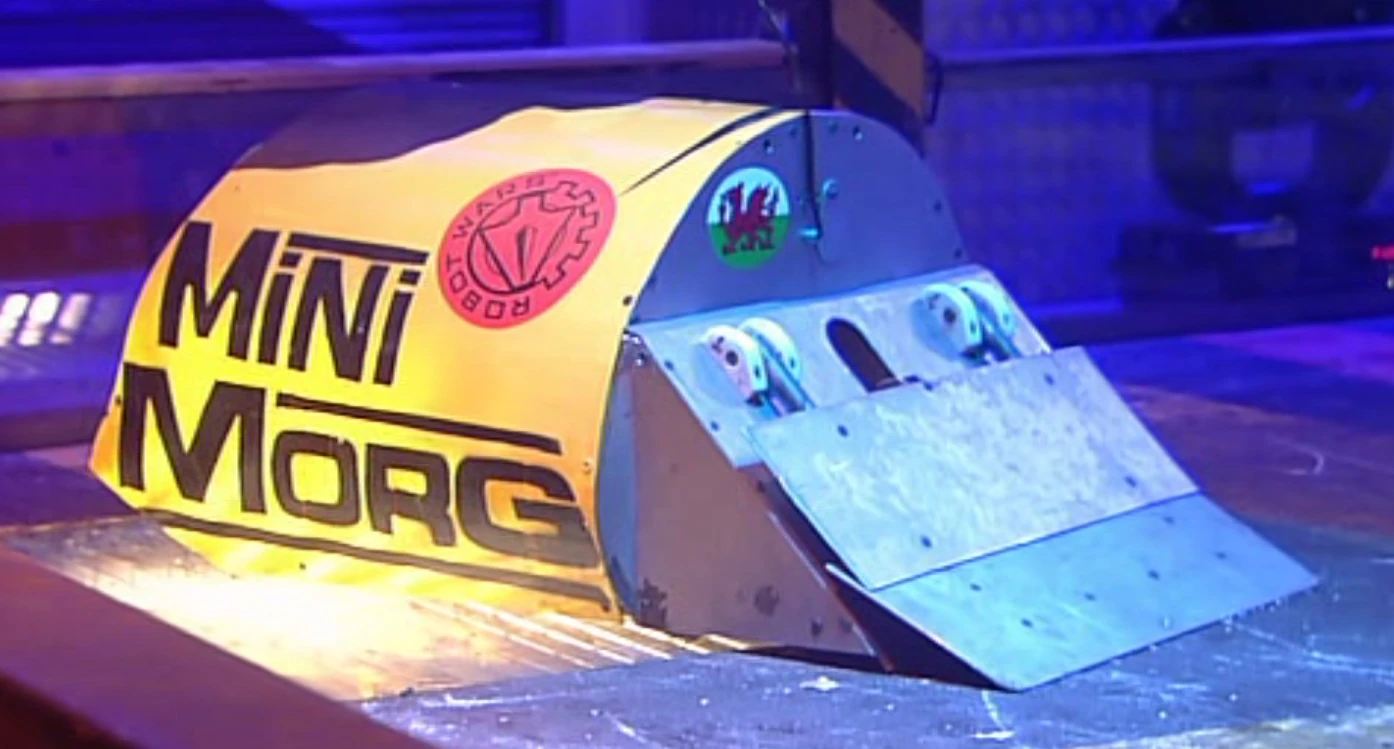

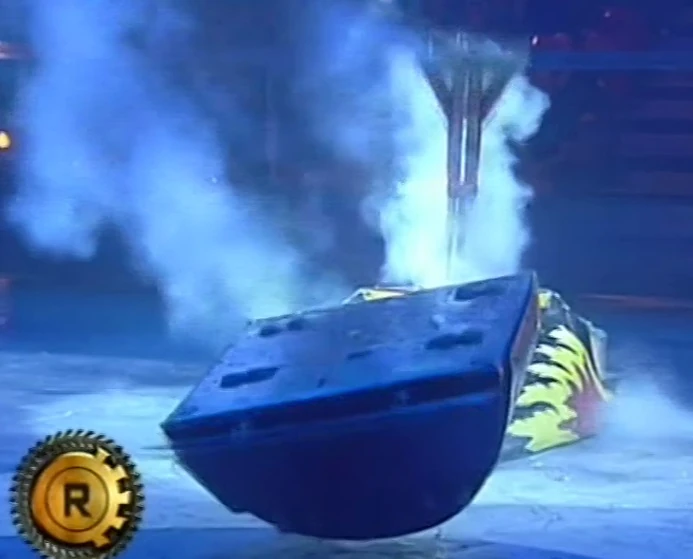

Extreme mini morg

The rollover design of Mini Morg

MightyMouse

The rollbar at the back of Mighty Mouse

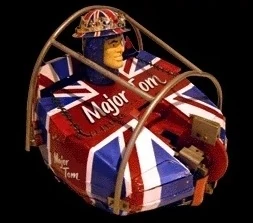

Major tom

The Series 6 version of Major Tom, showing the rollcage

Robochicken vs mega morg

Mega Morg lies stranded after the flip by Robochicken

Passive designs were self-righting mechanisms that didn't require any moving parts to work. Mostly, they all included some kind of curved armour or bars designed to roll the robot back onto its wheels when it was flipped over. Robots such as The Morgue and Velocirippa were successful at surviving flips by opponents as the momentum of the flip allowed the shape to carry them back onto their wheels.

However, they all required sufficient space behind them to allow the robot to roll back over. The robots rarely had a backup srimech if the robot was trapped on a wall, leading to the robot becoming immobilised. It was also possible for the robot to become stranded on its back if the flip lacked momentum, or was in the wrong plane of attack. These shortcomings resulted in Ivanhoe's defeat in Series 2 as it was lifted onto its side by G.B.H., and Mega Morg's loss in Series 7 after it was flipped straight onto its back by Robochicken which wasn't the intended direction aimed for by the design.

Srimech Type Description of srimech Notable robots
Rollover body shape A roughly Semi-circular shaped body shell allowed the robot to continue rolling after being flipped, eventually falling onto its wheels. Very effective when flipped sideways, but problematic when flipped from the front, as demonstrated by Mega Morg against Robochicken in Series 7. Ivanhoe, The Morgue, Destructosaur
Rollbar One bar mounted high above the robot, which used the imbalanced centre of gravity of the robot to roll itself back onto its wheels. Velocirippa, Mighty Mouse
Rollcage A series of bars mounted on top of the robot to help it roll back over if it was flipped. The main difference between rollcages and the rollover design used by other robots is that the bars are exposed and separate from the robot, often leaving them vulnerable to being damaged in the process. Spikasaurus, Major Tom (Series 6)

ReferencesEdit

  1. https://www.youtube.com/watch?list=PL096DCF9124F25F58&v=hXIreYJq-p0&feature=player_detailpage#t=389
